1.7mm Aluminum Lean Pipe Alloy Lean Tube Custom Supplier

Conventional pipes are equipped with standard positioning grooves on the outer surface. Casters, slide rails, laminates and other accessories can be fixed via side nuts and special connectors without welding, realizing rapid modular assembly.

Compared with the 1.5mm wall thickness, the 1.7mm pipe features approximately 20%-30% higher bending and torsion resistance. When a single 4-meter pipe is applied as a simply supported beam, its safe bearing capacity reaches 100–140 kg (uniformly distributed load with a 1-meter span).

Lighter than 2.0mm thick pipes, it endows assembled equipment with better mobility and lower comprehensive cost. It serves as a cost-effective optimal choice for heavy-load scenarios.

Model	XY-2802

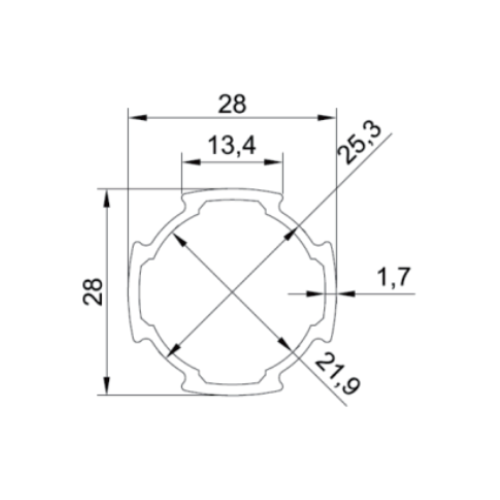

Specification	Φ28mm*1.7mm
Weight	0.442Kg/m
Packing	10 pipes/bundle
Lenght	4 meters/pipe
Material	6063/6005-T5/T6
Surface Treatment	Anodic Oxidation
