ADC-12 Alloy Universal Movable Connector for Lean Tube

Made of ADC-12 die-cast aluminum alloy, our universal movable joint rotates freely at any angle vs fixed fittings. Options include inner connector, outer connector and 90-degree swivel connector.

Product Model： XY-3A/XY-3B/XY-3D/XY-3E

Material： ADC-12

Size： D28mm

Packing： Carton

Send Inquiry

Description

Products Description

The universal swivel joint is precision die-cast from ADC-12 aluminum alloy. Unlike fixed-angle pipe connectors, it enables free rotation at arbitrary angles for flexible frame assembly.

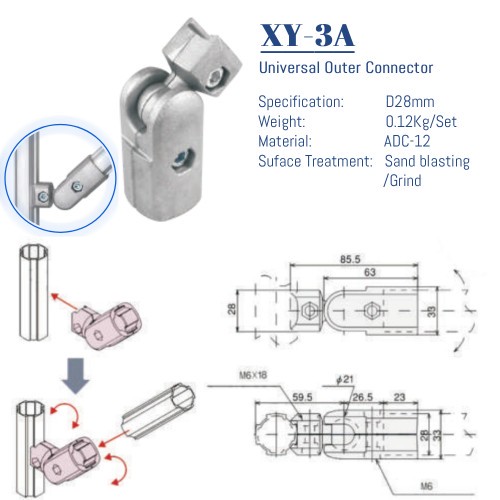

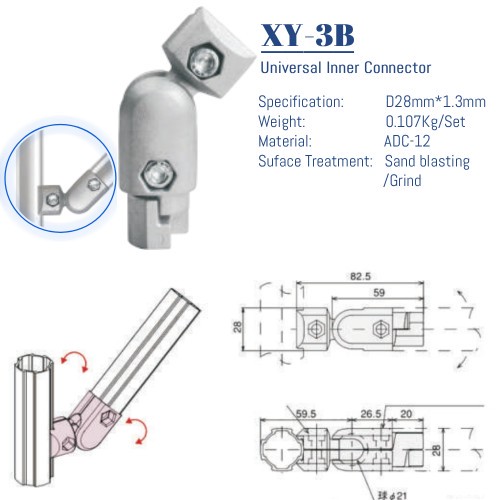

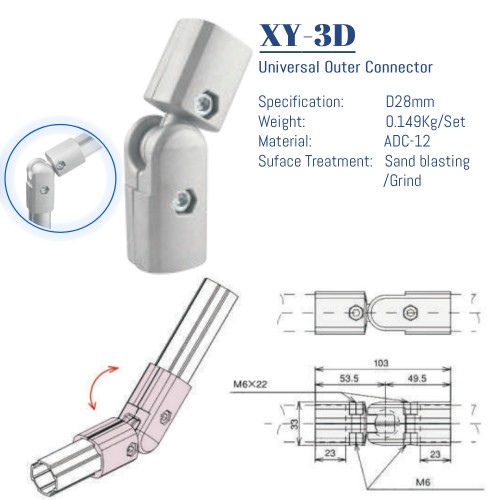

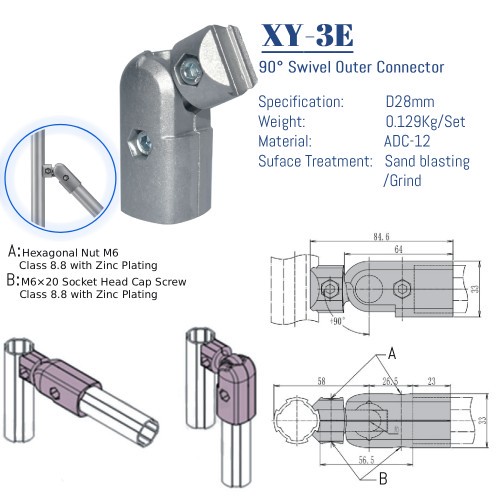

Three types are available for selection: inner insert connector, outer male connector and 90° movable swivel joint. Widely applied in lean pipe workbenches, storage racks and LCIA tooling fixtures.
