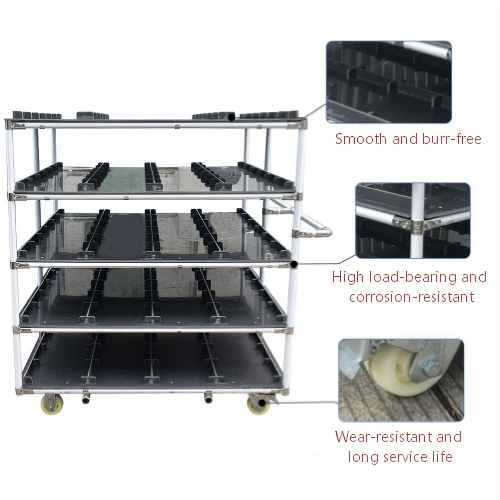

This is a lean pipe material turnover trolley with dedicated jig positions custom-designed for customers. It serves as transport and storage equipment specially engineered for specific tooling jigs and customized parts. Its core applications are as follows:

Transfer and Circulation Management of Tooling Jigs

The black grooves and slots on each layer are positioning seats tailor-made for corresponding jigs. They firmly fix the jigs to prevent collision and displacement during transportation. The trolley enables full-process circulation of jigs from cleaning and maintenance to storage and line-side workstation delivery, avoiding mixed placement and misuse.

Organized Transfer of Custom Parts and Semi-finished Products

It is also suitable for handling product housings, injection-molded parts, stamped parts and other components of specific specifications. The slotted structure prevents parts from being scratched or deformed, and realizes one item per position visual management to avoid material mixing and picking errors.

Workshop Material Distribution (Mizusumashi Operation)

Fitted with casters at the bottom, the trolley moves flexibly between working processes. It can deliver materials and jigs for multiple layers and multiple workstations in one trip, reducing repeated manual handling and optimizing production rhythm.

On-station Jig Temporary Storage & 5S Management

It can also be used as a fixed jig rack beside workstations to classify and store jigs for different processes. Tools are clearly visible and easy to access, saving searching time and keeping the workshop neat and well-organized.

Product Advantages

Damage Prevention & Protection

Custom slots combined with anti-static and non-slip shelf boards protect precision jigs and parts from scratches and damage during handling.

Flexible Adaptability

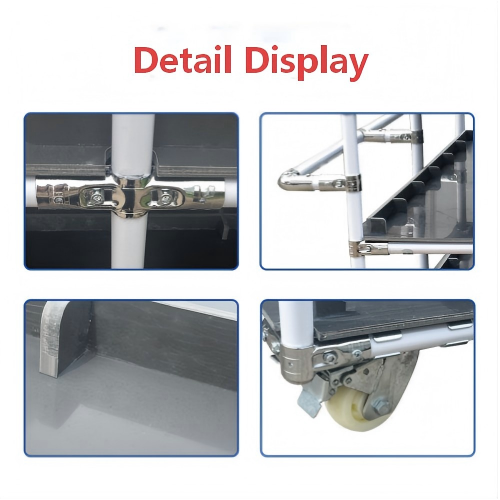

The lean pipe frame allows adjustment of shelf spacing and addition or reduction of jig positions, easily adapting to production line changes and process upgrades.

High Space Utilization

The multi-layer vertical design greatly saves floor space compared with flat storage, ideal for multi-variety and multi-process flexible production lines.

Flexible Mobility

Equipped with brake casters, it can freely move between production lines, warehouses and maintenance areas, and be securely fixed beside workstations whenever needed
