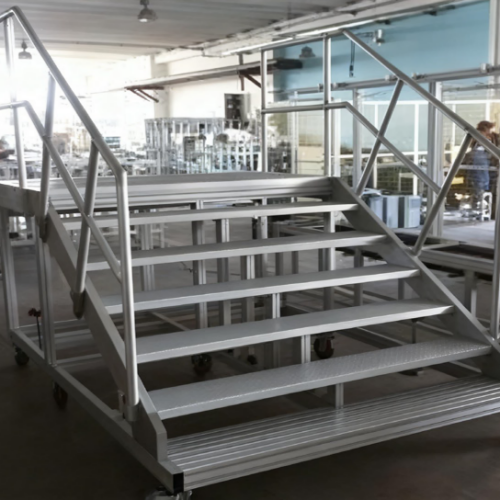

We professionally design and manufacture aluminum profile step systems.

The complete system is modularly assembled from industrial aluminum profile main frames, dedicated aluminum step treads, guardrails and handrails, as well as base connection fittings. It covers industrial access ladders, maintenance platforms, crossover ladders, and equipment walkways as a full solution.

The whole structure adopts welding-free bolt assembly, which is detachable, relocatable, corrosion-resistant and rust-proof. It is specially designed for automated workshops, production lines, equipment maintenance and line-crossing access passages.

Four Major Modules of Aluminum Profile Step System

1. Main Frame Section

Assembled from standard industrial aluminum profiles:

• Upright columns: 4040, 4080, 5050, 6060, 8080 series aluminum profiles

• Beams and diagonal braces: Reinforce the entire ladder frame to prevent shaking

Features: Universal T-slot design, allow arbitrary drilling and free splicing, suitable for on-site assembly.

2. Step Tread Section

Two mainstream configurations:

• Special aluminum profile step strips

  With anti-slip raised patterns / serrated edges; common widths: 160mm, 200mm. Direct clip-on installation, high anti-slip performance and strong load capacity.

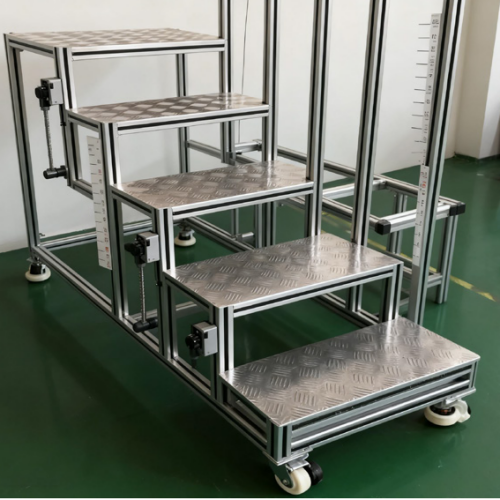

• Patterned aluminum plate / aluminum grating treads

  Ideal for large-area platforms and elevated walkways; ventilated, anti-slip and less dust accumulation.

3. Safety Protection System

Aluminum profile handrails and guardrail posts

Middle protective cross bars and baffle plates

Bottom kick plates

Fully compliant with industrial safety standards, preventing falling and stepping accidents.

4. Supporting Fitting System

Angle brackets, internal connectors, T-bolts

Adjustable leveling feet for ground leveling

Optional casters for mobile access ladders

End caps, dust-proof sealing strips, anti-slip rubber strips
