Adjustable Screw Type Swivel Caster With Threaded Shank

Casters are widely applied on lean pipe trolleys, workbenches and turnover racks. We supply swivel casters, fixed casters and brake casters. Threaded stem and plate mounting types are available.

Product Model： Optional

Material： Optional

Size： Optional

Packing： Carton

Send Inquiry

Description

Products Description

Picture	Product	Type	Wheel diameter (mm)	Castor width (mm)	Screw SPECS (mm)	Setting height (mm)	Load capacity (Kg)

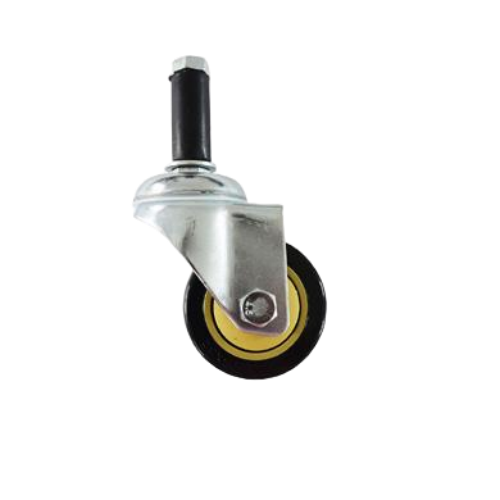

	Stem Swivel castors of PU-without brake	3"	75	32	M12*60	110	80
		4"	100			130	90
		5"	125			155	100

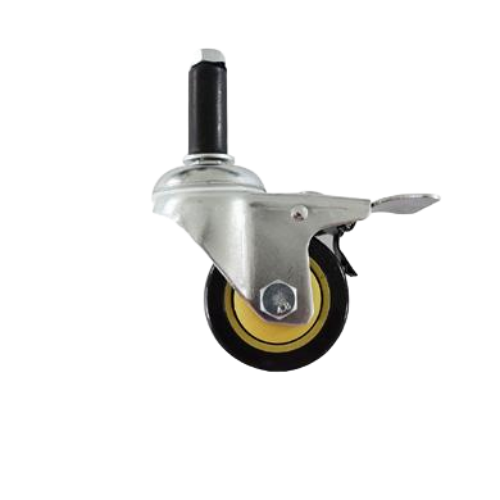

	Stem Swivel castors of PU-with brake	3"	75	32	M12*60	110	80
		4"	100			130	90
		5"	125			155	100

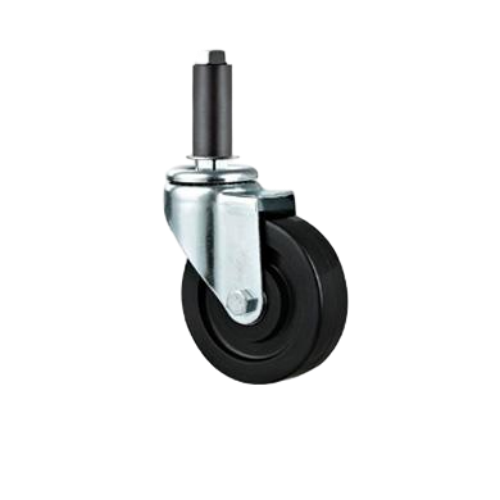

	Anti-static stem Swivel castors of PU-without brake	3"	75	32	M12*60	110	80
		4"	100			130	90
		5"	125			155	100

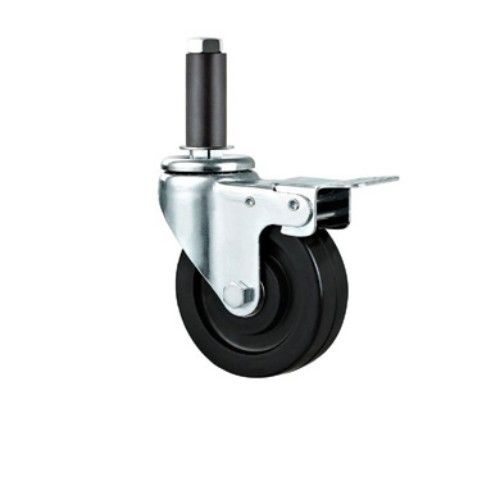

	Anti-static stem Swivel castors of PU-with brake	3"	75	32	M12*60	110	80
		4"	100			130	90
		5"	125			155	100

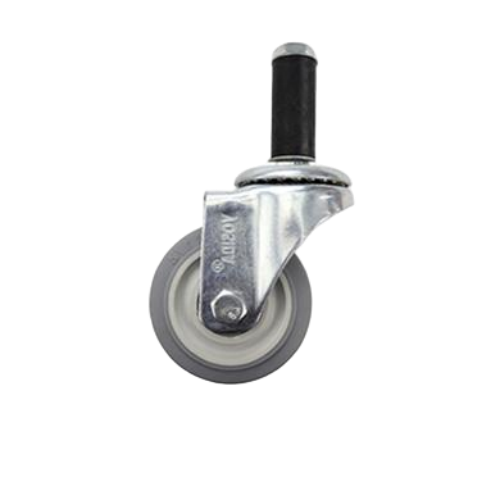

	Mute stem Swivel castors of TPR-without brake	3"	75	32	M12*60	110	80
		4"	100			130	90
		5"	125			155	100

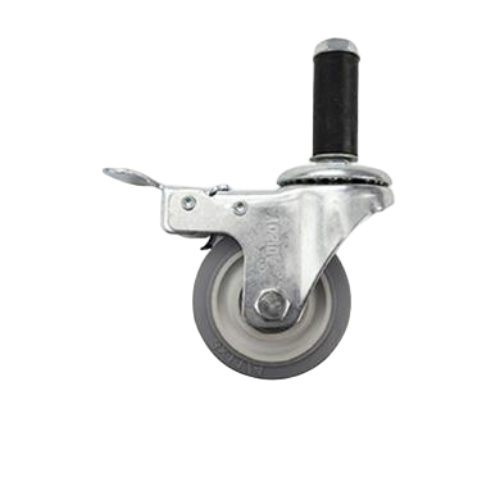

	Mute stem Swivel castors of TPR-with brake	3"	75	32	M12*60	110	80
		4"	100			130	90
		5"	125			155	100

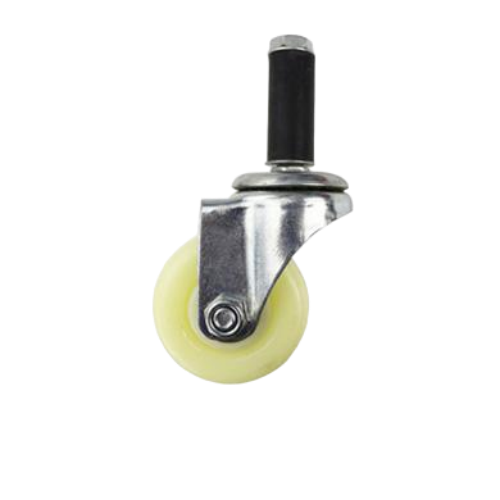

	Stem Swivel castors of nylon-without brake	3"	75	32	M12*60	103	80
		4"	100			128	90
		5"	125			158	100

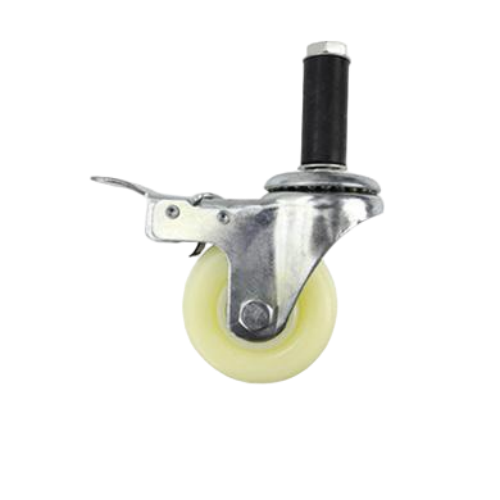

	Stem Swivel castors of nylon-with brake	3"	75	32	M12*60	103	80
		4"	100			128	90
		5"	125			158	100

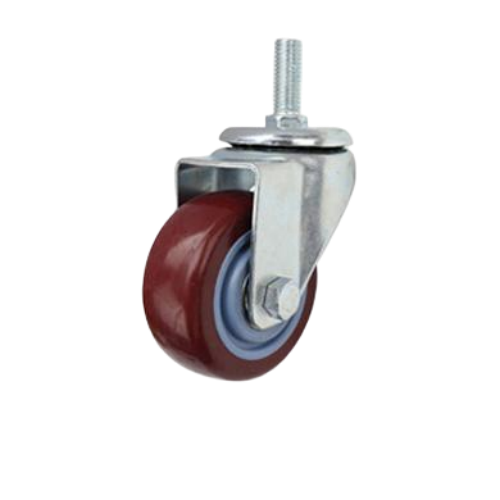

	Screw threaded castors of PU-without brake	3"	75	32	M12*30	103	75
		4"	100			128	85
		5"	125			158	95

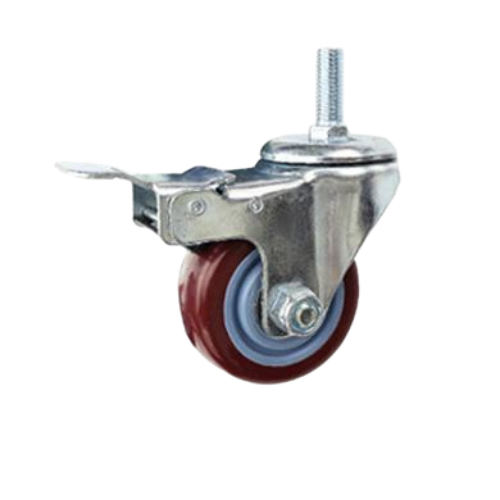

	Screw threaded castors of PU-with brake	3"	75	32	M12*30	103	75
		4"	100			128	85
		5"	125			158	95

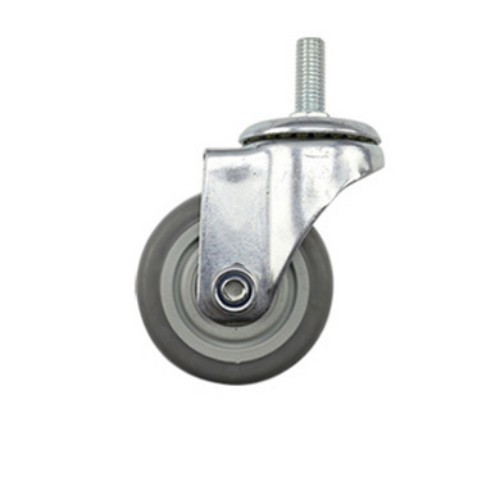

	Mute screw threaded castors of TPR-without brake	3"	75	32	M12*30	103	75
		4"	100			128	85
		5"	125			158	95

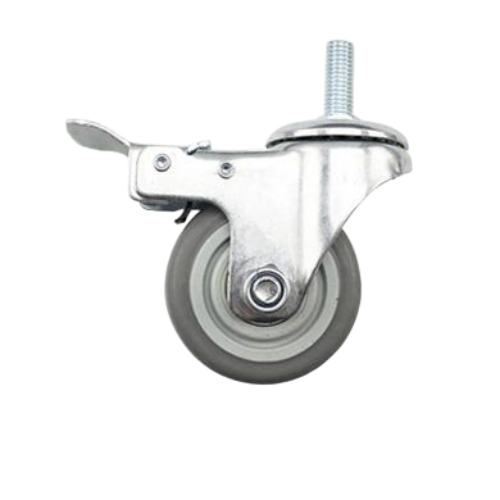

	Mute screw threaded castors of TPR-with brake	3"	75	32	M12*30	103	75
		4"	100			128	85
		5"	125			158	95
color,material and whether double bearings can be customized
