Structural Characteristics

Wide body U-shaped groove: 60mm wide groove suitable for 400-600mm wide turnover boxes, with stability better than 40 × 33 narrow type.

Strengthening sheet metal frame: cold bending integrated molding, edge scratch resistant treatment; Compared to aluminum alloy models, it has better resistance to deformation, heavy load, and high cost-effectiveness.

Dense fine wheel design: 16mm small spacing, uniform force distribution on the box, low noise (<50dB), and anti jamming.

Installation hole position: bottom long circular hole, adjustable spacing; Cooperate with lean pipe joints and U-bolts for quick fixation.

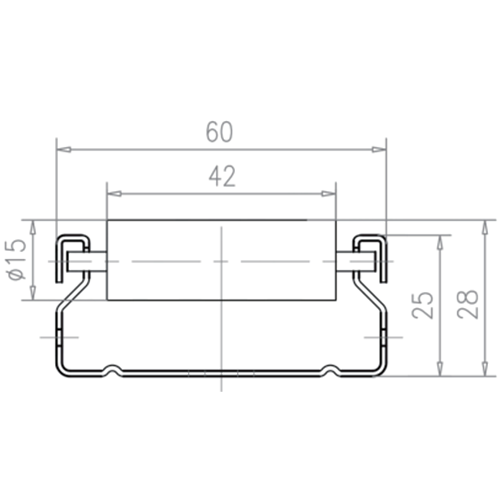

60mm Sheet Metal Roller Track-60*25
Frame Material	Steel Electrolytic Cold-rolled Commercial（SECC）
Wheels Material	PE
Wheels color	(White/Black )
Wheel spacing	16mm
Bearing Per Meter	200KG
Remark	( Equipped with 60mm connectors)

Company Profile

Shanghai Xuying Industrial Co., Ltd., established in January 2013, boasts nearly 20 years of experience in the industry.

Currently, our company primarily engages in the research, development, production, and sales of first-generation lean pipes (steel-plastic composite pipes), second-generation lean pipes (stainless steel pipes), third-generation lean pipes (aluminum alloy pipes), and related accessories, as well as aluminum profiles, accessories, and equipment.

The finished equipment we can currently provide for enterprises includes: lean pipe workbenches, lean pipe assembly lines, U-shaped production lines, flow rail lean pipe racks, lean pipe storage racks, lean pipe turnover racks, aluminum profile workbenches, aluminum profile frames, aluminum profile partition walls, and other industrial finished product series.
