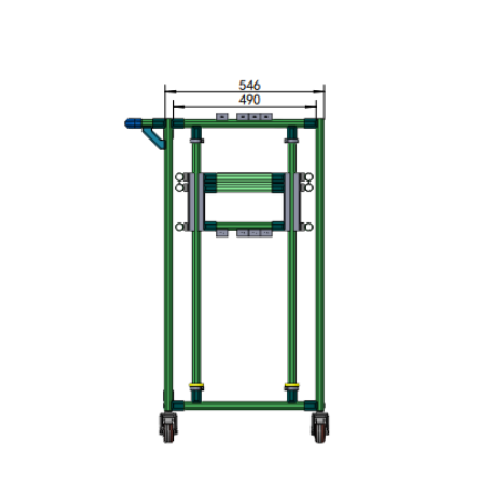

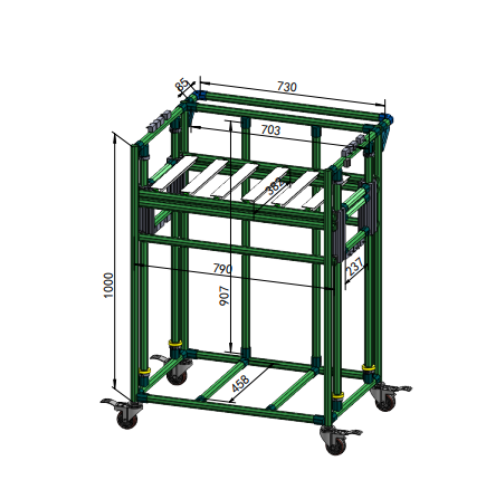

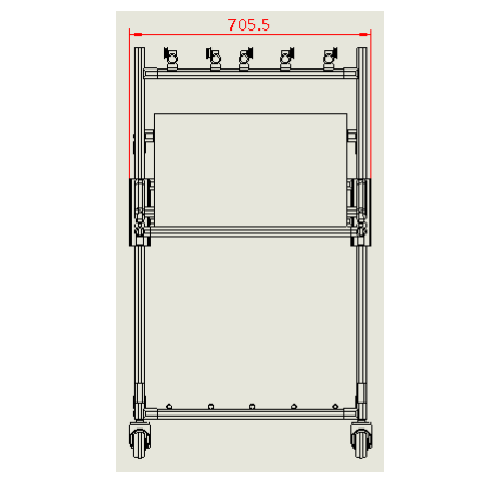

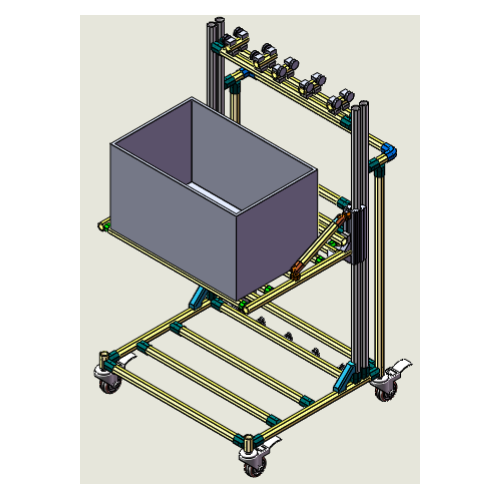

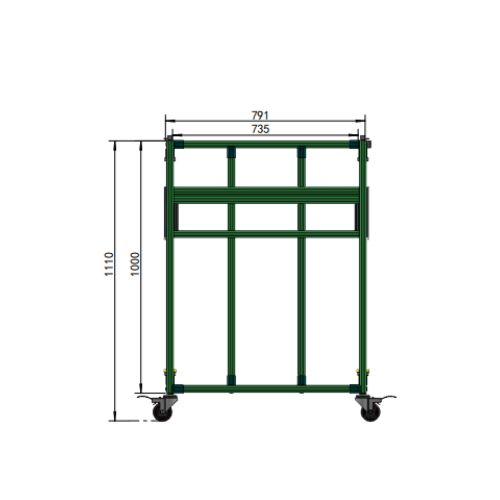

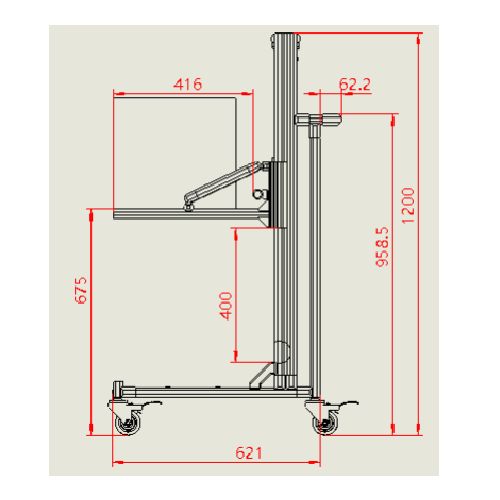

LCIA Mobile Lifting Cart Aluminum Lean Pipe Labor-Saving Workshop Lifting Trolley

This lifting trolley adopts a premium aluminum lean pipe frame equipped with a professional spring counterbalance mechanism. Leveraging spring tension and gravity linkage, it realizes automatic height lifting without manual operation. The ergonomic hands-free and bend-free lifting design eliminates unnecessary repetitive movements for workers, effectively reduces labor fatigue and waste of human resources, and significantly improves workshop handling efficiency and lean production benefits.

Product Model： /

Material： Aluminum Alloy Lean Pipe+Connector

Size： Custom

Packing： Loose or installed for shipment, can be packed in wooden boxes

Send Inquiry

Description

Products Description

As the core component of this lifting trolley, the spring counterbalance mechanism achieves a perfect balance between gravity and spring force. When the material gravity exceeds the spring force, the material platform automatically drops to a proper height, keeping the top layer of materials always within the optimal picking range for workers. As materials are consumed and the load gravity decreases, the platform will rise automatically accordingly.

Whether the materials are added or reduced, the trolley completely avoids frequent bending and stooping movements during material handling, greatly reducing worker fatigue and improving operational efficiency. Meanwhile, its mobile design upgrades traditional fixed and ordinary trolleys, making it a classic and practical solution for workshop lean production improvement and LCIA low-cost automation transformation.
