Products Description

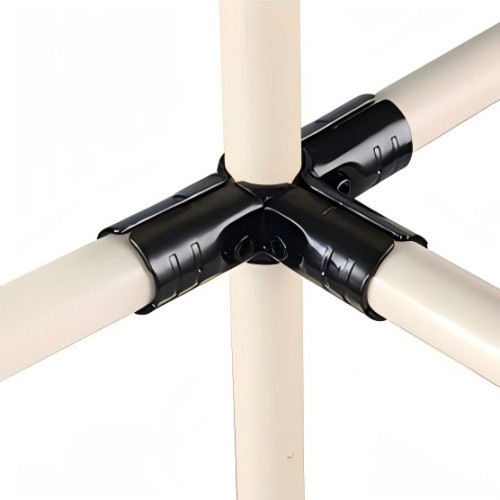

Electrophoresis Lean Tube Fitting Connector | HJ Series Metal Joint for Assembly Line System
Principles of electrophoresis process & core advantages (compared to electroplating / painting)
Cathodic electrophoresis involves the penetration of paint film into metal micropores, achieving complete overall coverage, rather than surface adhesion:
Rust prevention is far superior to painting and better than ordinary electroplating
The paint film is uniform and dense, without dead spots, peeling, or detachment; it remains rust-free for 3 to 5 years in humid or oily workshops; paint easily peels off, exposing iron and causing rust.
Anti-static / Conductive Stability (Preferred for Electronic Workshops)
The surface resistance of the black electrophoretic coating is 10⁶~10⁹Ω, providing permanent anti-static protection. It can be paired with anti-static plastic-coated tubes to form a complete ESD system. The chrome-plated connectors are insulated but do not provide anti-static protection.
Strong adhesion, resistance to friction and impact
The disassembly and assembly, collision, and wiping in the workshop do not cause delamination; the paint peels off easily when scratched, and the electroplating tends to peel.
Matte black is aesthetically pleasing and doesn’t show dirt
It matches perfectly with the black anti-static plastic-coated tube, presenting a neat and high-end overall appearance; the chrome-plated finish is prone to fingerprints and noticeable scratches.
extremely cost-effective
Price ≈ 70% of chrome-plated fittings, with rust resistance and durability > painting, offering the best overall cost.
Sufficient rigidity and strength
Steel plate stamping + screw fastening, ensuring stable load-bearing capacity, without loosening or shaking.
Model | Components | Model | Components |
HJ-1 | H-1*2；M6*1 | HJ-1A | H-1A*2；M6*1 |
HJ-2 | H-2*1；H-3*1；M6*2 | HJ-3 | H-2*2；H-4*1；M6*3 |
HJ-4 | H-4*2；M6*2 | HJ-5 | H-2*4；M6*4 |
HJ-6 | H-7*2；M6*1 | HJ-6A | H-7A*2；M6*1 |
HJ-7 | H-5*2；H-6*2；M6*2 | HJ-7A | H-6*2；H-6A*2；M6*3 |
HJ-7B | H-5*2；M6*1 | HJ-8 | H-19*2；J-140*2；M6*1 |
HJ-9 | H-21*2；M6*1 | HJ-10 | H-12*2；J-140*1；M6*1 |
HJ-11 | H-13*2；M6*1 | HJ-11A | H-13A*2；M6*1 |
HJ-11B | H-13B*2；M6*1 | HJ-12 | H-14*2；H-6*4；M6*4 |
HJ-13 | H-15*1；H-16*1；M6*1 | HJ-14 | H-90*2；M6*2 |
HJ-15 | H-17*1；H-18*1；M6*1 | HJ-16 | H-20*2；M6*1 |
HJ-16A | H-1*1；H-20*1；M6*1 | HJ-17 | H-8*1；H-9*1；M6*1 |
HJ-18 | H-9*2；M6*1 | HJ-19 | H-10*2 |
HJ-20 | H-23*2；J-140*1；M6*1 | HJ-21 | H-24*2；J-140*1；M6*2 |
HJ-22 | H-1*2；H-31*2；M6*2 | HJ-23 | H-1*2；H-34*2；M6*3 |
HJ-24 | H-1*2；H-38*2；M6*2 | HJ-25 | H-1*4；H-39*2；M6*3 |
HJ-30 | H-30*2；M6*1 | HJ-45 | H-45*2；M6*1 |
HJ-60 | H-60*2； | HJ-110 | H-11*2；M6*2 |
HJ-160 | H-160*2；M6*2 | HJ-180 | H-180*2；M6*1 |
Note: H- represents our single-piece H series connectors; M6 hexagonal socket screws and nuts | |||
