Produce Model

Product Picture

Product Application

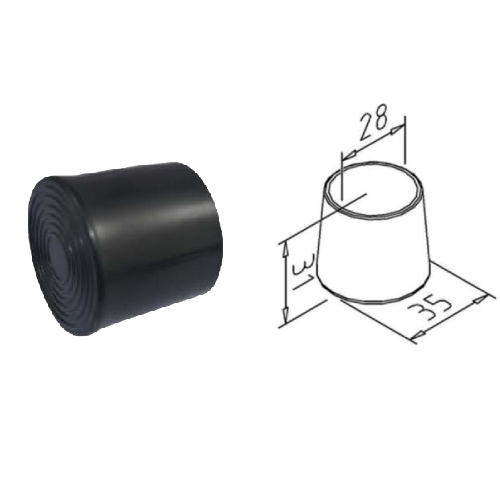

J-49

Lean pipe foot sleeves are anti-slip protective plastic covers fitted onto the bottom end of 28mm outer diameter lean pipes. They are installed on support legs of storage racks, workbenches and turnover trolleys. This fixed-height fitting mainly provides floor protection, anti-slip performance, noise reduction and scratch prevention.

Standard Specification for 28mm Lean Pipe

• Material: Common PP hard plastic, PVC and rubber

• Color: Black, off-white, grey, matching mainstream lean pipe colors

• Single Weight: About 8.4~9.2 grams per piece

• Compatibility: Fit 1st-gen, 2nd-gen and stainless steel lean pipes with 28mm outer diameter

• Installation: Direct press-fit or knock-in assembly, no screws required

Main Functions

1. Floor Scratch Prevention: Prevent metal pipe ends from damaging epoxy floors and ceramic tiles.

2. Anti-slip & Noise Reduction: Increase friction force to avoid sliding and lower moving noise.

3. Pipe End Protection: Avoid pipe port deformation, rust formation and hand injury caused by sharp burrs.

4. Pressure Dispersion: Evenly bear load and protect contact parts between pipe bases and ground surfaces.

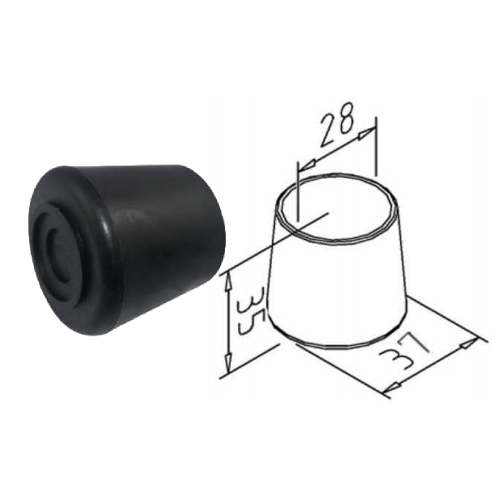

J-50

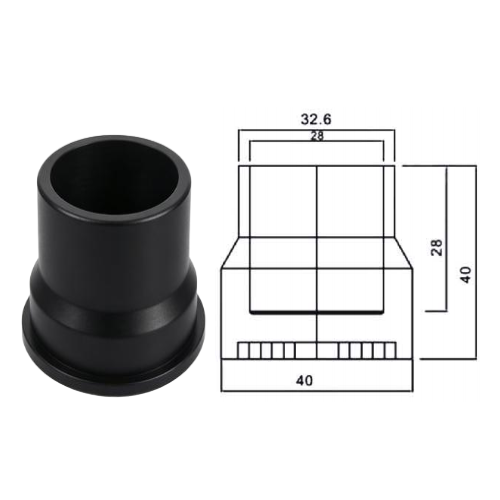

XY-16C

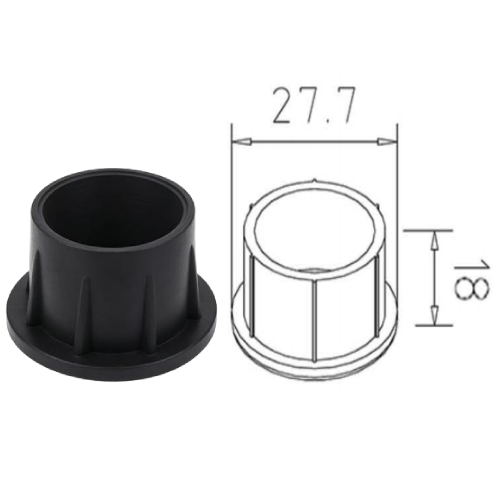

J-110

Lean pipe end caps, also known as lean pipe plugs and pipe end closures, are basic protective fittings for lean pipe systems and standardized components widely used in lean production workshops.

Core Specifications & Parameters

• Applicable Pipe Diameter: Standard 28mm outer diameter for 1st, 2nd and 3rd generation lean pipes; certain types fit 43mm large-diameter pipes.

• Common Materials: LDPE low-density polyethylene, hard PP plastic; metal versions adopt stainless steel or aluminum alloy.

• Available Colors: Black, off-white and grey, matching regular lean pipe colors.

• Installation Method: Press-fit or knock-in installation without screws, fixed tightly by interference fit.

• Unit Weight: Approximately 2.5-3 grams per piece for standard 28mm plastic end caps.

Main Functions

Safety Protection

Seal pipe openings to prevent injuries caused by sharp cutting edges, and block dust and moisture inside pipes to avoid rusting.

Neat Appearance

Uniformly cover pipe ends to keep racks, workbenches and turnover trolleys tidy and compliant with 5S on-site management standards.

Structural Protection

Prevent pipe ends from deformation due to collision and avoid internal blockage, ensuring smooth installation of leveling feet and connectors.

Auxiliary Positioning

End caps with cross or star reinforcing ribs can serve as simple positioning parts to assist alignment during frame assembly.

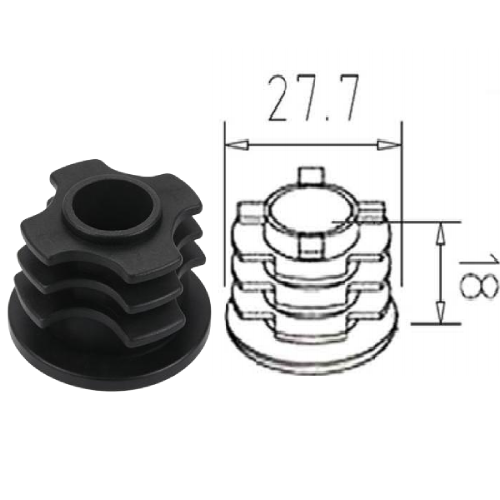

J-120
