European Standard 80120 Heavy Duty T-slot Aluminum Profile

Name: European Standard 80120 Heavy Duty T-slot Aluminum Profile
Brand: XUYING
Availability: InStock

(High Rigidity 80x120mm Industrial Aluminum Extrusion For Heavy Frame） European standard 80120 heavy-duty industrial aluminum profile is a large-cross-section, high-load-bearing aluminum structural

Product Model： XY-8-80120

Material： 6063-T5

Size： EU-80120

Packing： Carton

Send Inquiry

Description

Products Description

(High Rigidity 80x120mm Industrial Aluminum Extrusion For Heavy Frame）

European standard 80120 heavy-duty industrial aluminum profile is a large-cross-section, high-load-bearing aluminum structural component. It is widely applied in industrial automation, equipment frames and other heavy-duty scenarios.

Structural & Performance Features

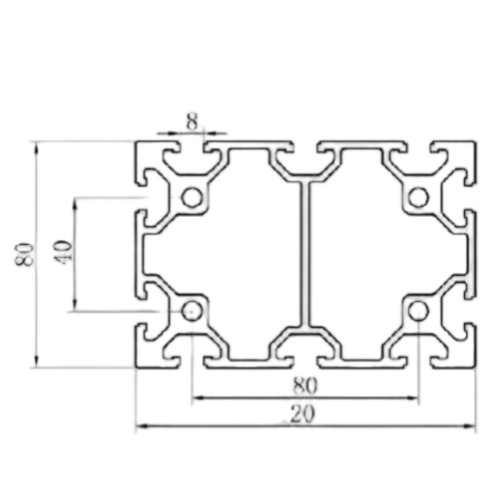

Dual-cavity hollow structure

Designed with double large cavities and reinforcing ribs, it greatly enhances overall rigidity and torsion resistance, ideal as main beams and upright columns for heavy-duty equipment.

Multi T-slot design

Equipped with 8mm European standard T-slots distributed on all sides. It is fully compatible with standard EU aluminum profile accessories, allowing multi-direction fast installation of connection plates, casters, cover panels and other fittings without welding.

High load-bearing capacity

With high linear weight and high section moment of inertia, it is perfectly suited for supporting heavy machinery, large platforms and long-span support beams.

Main Application Scenarios

Heavy equipment frames: Support frames for engraving machines, CNC machinery and large automated equipment.
Industrial platforms & stair structures: High-strength support for maintenance platforms, access ladders and safety guardrails.
Large automated production lines: Main beams and upright columns for speed chain lines and heavy-duty conveyor systems.
Custom industrial structures: Heavy-duty workbenches, machine safety enclosures and large display racks.

Model	XY-8-80120
Specification	80120
Wall Thickness	4.5mm
Lenght	6 meters/pipe
Material	6063-T5
Surface Treatment	Anodic Oxidation
