European Standard 3030 T-slot Aluminum Profile For Lean Production

Name: European Standard 3030 T-slot Aluminum Profile For Lean Production
Brand: XUYING
Availability: InStock

Our European Standard 3030D industrial aluminum profile is a standard structural component widely used in lean production and automation fields. Specifications Cross-section: 30×30mm; Groove width:

Product Model： XY-8-3030D

Material： 6063-T5

Size： EU-3030D

Packing： Carton

Send Inquiry

Description

Products Description

Our European Standard 3030D industrial aluminum profile is a standard structural component widely used in lean production and automation fields.

Specifications

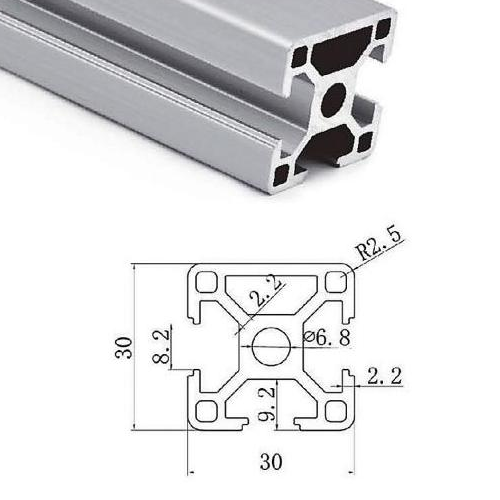

Cross-section: 30×30mm; Groove width: 8mm, compatible with European standard M6 / M8 connectors.

Standard length: 6m, custom cutting available as required.

Material & Processing

Made of 6063-T5 aluminum alloy. The surface is finished by anodizing or sandblasting anodization, featuring corrosion resistance and easy maintenance.

Key Features

Designed with a central hole and four-way T-slots, enabling multi-angle, welding-free modular assembly.

Wall thickness: approx. 2mm; Unit weight: about 0.9–1.0kg/m, balancing structural strength and lightweight performance.

Fully compatible with all European standard 30-series accessories, such as angle brackets, fastener nuts and leveling feet.

Main Application Scenarios

Lean workbench / operation station frame: Light-duty workstation construction for electronics and assembly lines.
Equipment protection & safety fencing: Modular safety barriers and partitions for production lines and machine tools.
Automation line frame: Support structures for small conveyor lines and inspection equipment.
DIY & customized structures: Lightweight frames for experimental racks, fish tank stands, display shelves and more.

Model	XY-8-3030D
Specification	3030D
Wall Thickness	2.0mm
Lenght	6 meters/pipe
Material	6063-T5
Surface Treatment	Anodic Oxidation/ Sandblasting and anodizing
