Plastic Coated Lean Tube Cage Trolley | Wire Rod Turnover Cart

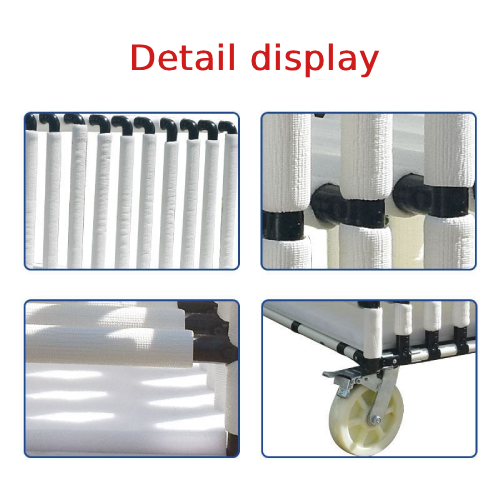

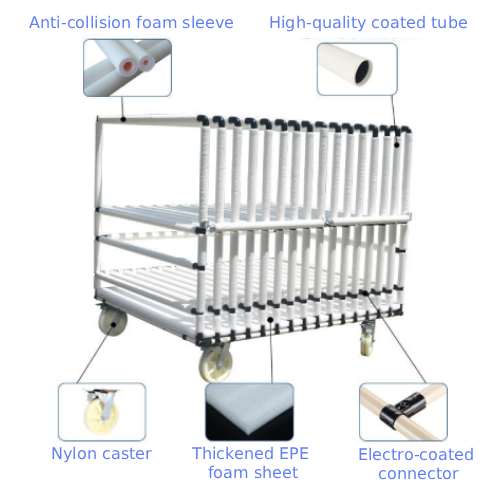

Custom plastic-coated tube cage turnover carts, also known as material cage trolleys, adopt plastic-coated lean tubes as the main frame. They are fitted with standard black electrophoresis coated connectors. The tubes are wrapped with high-quality anti-collision foam tubes, and premium EPE foam sheets can be laid on partial platforms. Equipped with casters, the carts effectively prevent materials from collision and scratches during transportation.

Product Model： /

Material： Coated Lean Pipe+Connector+Other

Size： Custom

Packing： Loose or installed for shipment, can be packed in wooden boxes

Send Inquiry

Description

Products Description

Application Scenarios

The cage-style turnover cart effectively stops goods from tipping over and falling apart. Fitted with casters, it serves both stationary storage and flexible transportation.

It helps boost material handling efficiency and cut manual labor during workshop material circulation. It is also ideal for temporary material storage, sorting management, warehouse picking and stock replenishment.

Preparations for Customization

First and foremost, confirm the type of materials to be transported, whether items are moved individually or in full cartons, as well as the dimensions of materials and bins. These factors determine the overall size of the cart and the appropriate lean tube specifications. Lean tubes with different wall thicknesses vary in cost.

Besides, the load capacity of casters — light-duty or heavy-duty types — also depends on the weight of transported materials.

Secondly, consider the working environment. Floor conditions affect caster selection, while ambient humidity dictates the proper type of lean tube to use.

Lastly, we recommend adopting universal connectors and structural parts regardless of future modification plans. This is critical for subsequent maintenance.
