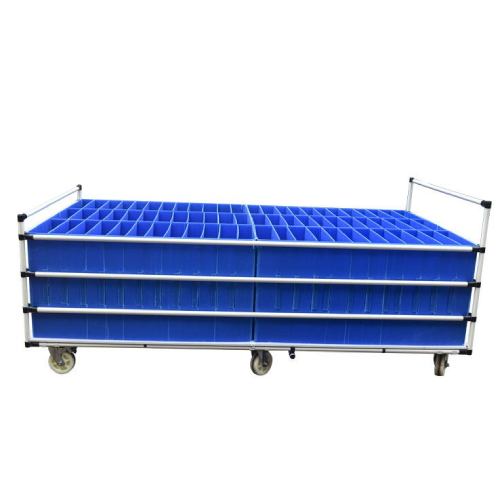

PP Corrugated Board Divider Parts Handling Trolley

PP Corrugated Board Divider Parts Handling Trolley

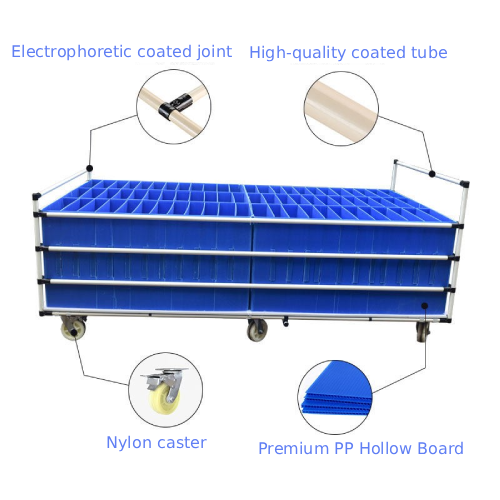

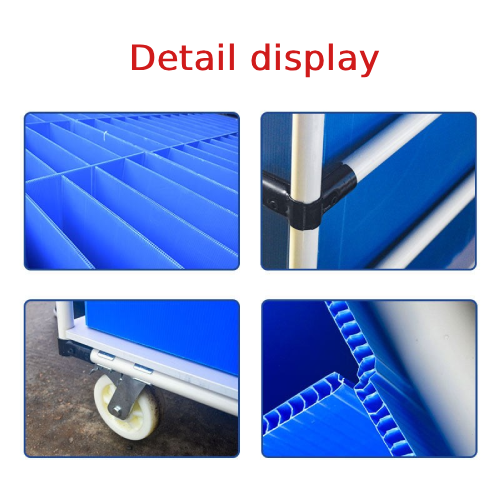

This lean tube parts trolley is designed for industial material sorting and turnover, It features a modular frame mad of high-quality lean tubes with metal connectorspaired with PP holw board dividers to create multiple compartments for small parts. Equipped with nylon casters it moves smoothly on workshop floors and lockssecurely when stationary. Ideal for line-side storage, material classification and lean manufacturing, it optimizes space utilization and workflow efficiency.

Product Model： /

Material： Coated Lean Pipe+Connector+Other

Size： Custom

Packing： Loose or installed for shipment, can be packed in wooden boxes

Send Inquiry

Description

Products Description

How to Customize This Type of Sorting Cart

The top priority is to confirm your materials and sorting requirements.

The dimension and weight of materials determine the size of each compartment. You also need to check if materials are placed in a regular pattern, such as sorting by model on different layers.

The load weight of each layer defines the overall load capacity of the cart, which guides the selection of main frame lean pipes and casters.

Besides, confirm the working scenarios: whether the cart runs on fixed routes or needs omnidirectional movement, as this decides the caster type. The width of passageways and elevator access will also affect the overall size of the cart.

Once the functions and dimensions are finalized, further customization is available. You may choose lean pipes in different colors. For humid environments, stainless steel pipes or aluminum alloy lean pipes are recommended. Alternative panel materials are also optional, including acrylic sheets and galvanized sheets besides PP hollow boards.

After all requirements are confirmed, our technical team will provide drawings for your approval. We suggest ordering a prototype for trial use once the drawings are confirmed.
