Roller Track Lean Manufacturing Cart with FIFO System

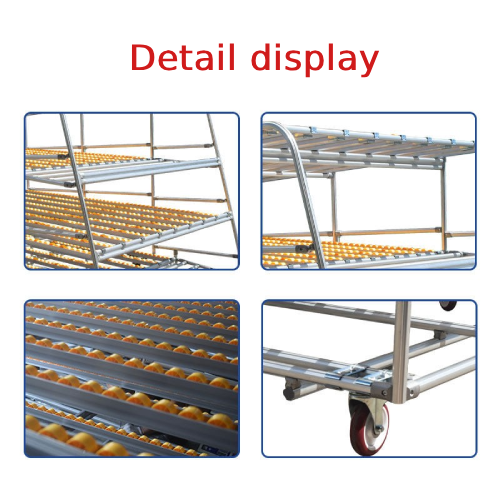

Mobile FIFO Lean Tube Parts Trolley with Gravity Flow Tracks Gravity-fed roller track cart with aluminum lean tube frame, designed for point-of-use material supply. Smooth flow rails, heavy-duty casters, and modular build enable flexible, efficient parts kitting and turnover.

Product Model： /

Material： Aluminum Lean Pipe+Connector+Flow Rail

Size： Custom

Packing： Loose or installed for shipment, can be packed in wooden boxes

Send Inquiry

Description

Products Description

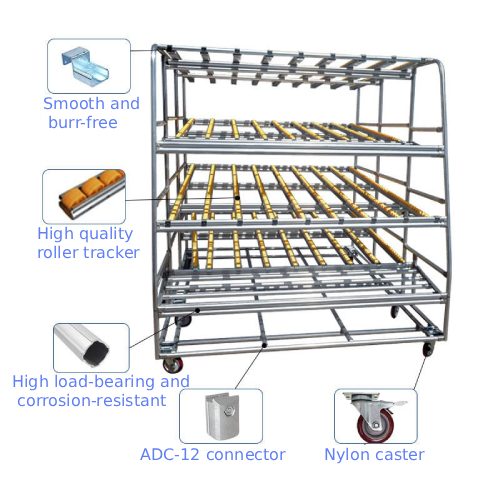

Main components of fluent strip weekly transfer	Characteristics and functions
Aluminum alloy lean pipe frame	Aluminum alloy lean tubes have high load-bearing capacity, corrosion resistance, stable and lightweight structure. They are very practical as the frame of this turnover vehicle. Of course, for cost control and load-bearing needs, we can also provide plastic coated lean tubes and aluminum profiles as options
High quality fluent strips	The fluent strip has a smooth and burr free surface, with yellow ABS rollers. Different joints are selected to give it a certain inclination angle, so the material can automatically slide forward by gravity, achieving first in first out. We have sheet metal fluent strips and aluminum alloy fluent strips to choose from, and we will also select rollers of different materials according to customer needs.
ADC-2 Joint	High strength die cast aluminum alloy joint, firmly connected, earthquake resistant and anti loosening, belongs to the universal type, suitable for most aluminum alloy lean pipe frames on the market, not easy to deform after long-term use, and very easy to replace.
Nylon PA	Silent universal nylon casters with brakes, flexible in movement, lockable in fixed position, suitable for various floors such as epoxy flooring and cement flooring in workshops. The casters can also be replaced with different sizes, loads, and functions to meet customer needs
