Products Description

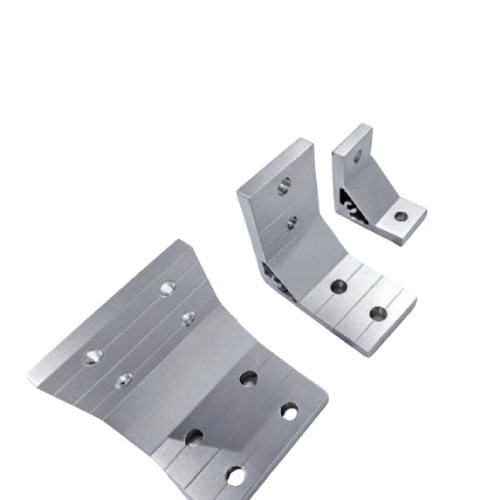

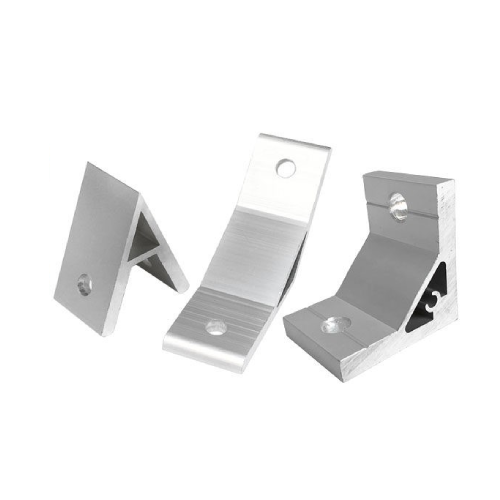

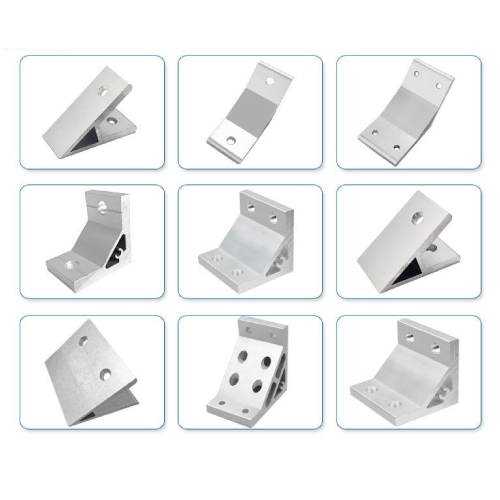

90° corner pieces are essential accessories for industrial aluminum profiles, widely used in equipment frames, assembly lines, material trolleys and other applications.
They enable T-type, L-type and cross connections for profiles, and also enhance the overall load capacity of equipment frames. Paired with dedicated T-bolts and flange nuts, they allow fast assembly and easy disassembly, and can serve for long-term use.

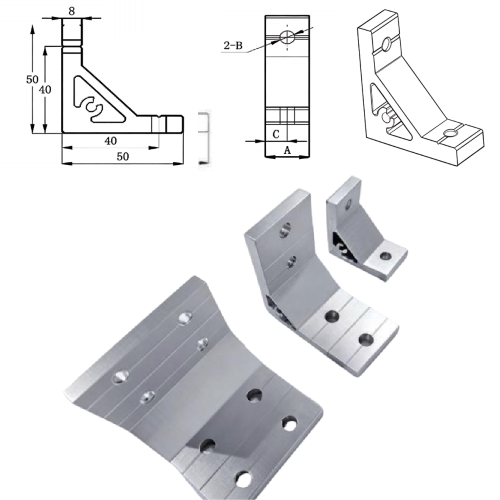

Aluminum Profile 90° Single-Hole Corner Bracket |  | ||||
Applicable Profiles | A | B | C | Order Number | |
2020 | 18 | 5.5 | 9 | 2020-90° | |
3030 | 28 | 7/9 | 14 | 3030-90° | |
4040 | 38 | 9 | 19 | 4040-90° | |
4545 | 43 | 9 | 21.5 | 4545-90° | |
5050 | 48 | 9 | 24 | 5050-90° | |

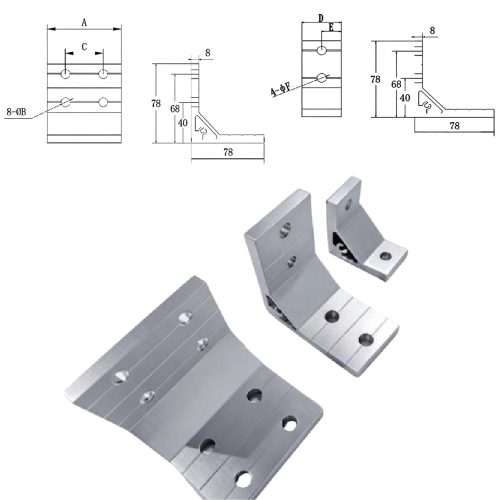

 | Aluminum Profile 90° Double-Hole Corner Bracket | ||||
Applicable Profiles | A | B | C | Order Number | |
3030 | 28 | 7/9 | 14 | 3030-90° | |
4040 | 38 | 9 | 19 | 4040-90° | |
4545 | 43 | 9 | 21.5 | 4545-90° | |
5050 | 48 | 9 | 24 | 5050-90° | |
Applicable Profiles | A | B | E | Order Number | |
6060 | 58 | 7/9 | 30 | 6060-90° | |
8080 | 78 | 9 | 40 | 8080-90° | |
9090 | 88 | 9 | 45 | 9090-90° | |
100100 | 98 | 9 | 50 | 100100-90° | |
