Made of 6063-T5 extruded aluminum profile, this 135° connector is finished by cutting and drilling. It is widely applied in aluminum profile frames and fastened directly with bolts to form diagonal bracing and outward extending structures at a 135° angle. It fits common national standard and European standard aluminum profiles with matched dimensions.

Below are part of our product specifications and models:

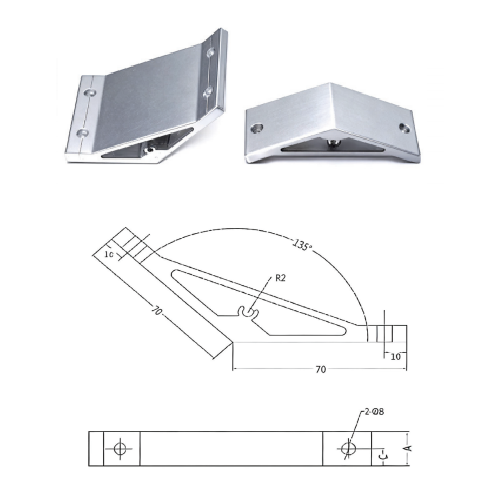

Aluminum Profile 135° Single-Hole Corner Bracket
Applicable Profiles	A	B	C	Order Number
2020	18	5.5	9	2020-135°
3030	28	719	14	3030-135°
4040	38	9	19	4040-135°
4545	43	9	21.5	4545-135°
5050	48	9	24	5050-135°

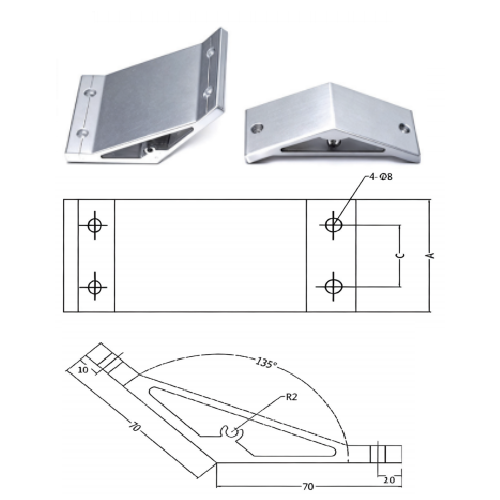

	Aluminum Profile 135° Double-Hole Corner Bracket
	Applicable Profiles	A	B	C	Order Number
	6060	58	719	30	6060-135°
	8080	78	9	40	8080-135°
	9090	88	9	45	9090-135°
	100100	98	9	50	00100-135°
